This passage focuses on exploring DC (Direct Current) voltage and AC (Alternating Current) voltage. It starts with defining each type of voltage, then proceeds to analyze the key differences between them. Additionally, it elaborates on their respective applications in various fields, aiming to provide a comprehensive understanding of these two fundamental forms of electrical voltage.
2.1 what is DC voltage
DC voltage refers to an electric potential difference that maintains a constant polarity and magnitude over time. In a DC circuit, the current flows in a single, unchanging direction, from the positive terminal to the negative terminal of the power source. Common sources of DC voltage include batteries, solar cells, and DC power supplies, which provide a steady and reliable electrical output.
2.2 what is AC voltage
AC voltage is an electric potential difference that periodically reverses its polarity and changes its magnitude over time. The current in an AC circuit alternates direction, typically following a sinusoidal waveform. This type of voltage is generated by power plants using alternators, where mechanical energy is converted into electrical energy. The alternating nature of AC voltage allows for efficient transmission over long distances, making it the standard for electrical power distribution.
Direction of current flow:In DC voltage circuits, the current maintains a strictly unidirectional flow. This means electrons consistently move from the negative terminal of the power source through the circuit and back to the positive terminal, never reversing their path. For example, in a flashlight powered by a battery, the current flows in one direction from the battery’s negative end to the bulb and back to the positive end. In contrast, AC voltage causes the current to reverse direction periodically. This reversal is determined by the frequency of the AC supply, which is 50Hz in most parts of Europe and Asia, and 60Hz in North America. At 50Hz, the current changes direction 100 times per second (once every 10 milliseconds), while at 60Hz, it reverses 120 times per second (once every 8.33 milliseconds). This alternating flow is a result of the rotating magnetic field in the alternator that generates the AC voltage, causing the polarity of the output to switch continuously.
Voltage magnitude stability:DC voltage is characterized by a stable, constant magnitude. Once the power source is connected, the voltage remains at a fixed value, barring any significant changes in the load or the source itself. For instance, a 12V car battery will supply approximately 12V to the car’s electrical system as long as it is charged, with only minor fluctuations under heavy loads like starting the engine. AC voltage, however, is inherently fluctuating. It follows a sinusoidal waveform, starting at zero, rising to a positive peak, falling back to zero, then dropping to a negative peak, and returning to zero again in each cycle. The "voltage" specified for AC (e.g., 220V or 110V in mains supply) is the root-mean-square (RMS) value, which is equivalent to the DC voltage that would produce the same power in a resistive load.
Transmission efficiency:AC voltage has a significant advantage in long-distance transmission due to its compatibility with transformers. Transformers can easily step up the AC voltage to very high levels (e.g., hundreds of kilovolts) for transmission. According to Joule’s law, power loss in a transmission line is proportional to the square of the current (P_loss = I²R). By increasing the voltage, the current decreases (since power P = VI), thereby reducing power loss. For example, transmitting 100MW of power at 100kV results in a current of 1000A, while transmitting the same power at 1000kV reduces the current to 100A, decreasing power loss by a factor of 100. After transmission, transformers step the voltage back down to safe levels for consumer use. DC voltage transmission, on the other hand, cannot be easily transformed using conventional transformers because transformers rely on changing magnetic fields (induced by alternating current) to transfer energy.
Sources:DC voltage is produced by devices that generate a steady electric potential. Batteries, both disposable (e.g., AA, AAA) and rechargeable (e.g., lithium-ion), use chemical reactions to create a constant voltage. Solar cells convert sunlight directly into DC voltage through the photovoltaic effect, with each cell producing around 0.5-0.6V. Fuel cells generate DC voltage by converting chemical energy from fuels like hydrogen into electrical energy. Rectifiers are another source; they convert AC voltage to DC by using diodes to block the negative half-cycles of the AC waveform, resulting in a pulsating DC that is often smoothed using capacitors. AC voltage is primarily generated by alternators in power plants. These devices use electromagnetic induction: a coil of wire rotating in a magnetic field induces an alternating current in the coil, which produces AC voltage.
Waveform:The waveform of DC voltage, when plotted on a graph with time on the x-axis and voltage on the y-axis, is a horizontal line. This straight line indicates that the voltage remains constant over time, with no variation in magnitude or polarity. Even in cases where the DC voltage is "pulsating" (e.g., unsmoothed rectified AC), the waveform consists of positive pulses with no negative components, and it is still classified as DC because the current does not reverse direction. AC voltage, in its most common form, has a sinusoidal waveform, which is a smooth, curved line that oscillates between positive and negative values. This sine wave is natural for alternators due to the circular motion of the coil in the magnetic field. However, AC can also have other waveforms in specific applications. Square waves, where the voltage switches abruptly between positive and negative values, are used in digital electronics and some audio applications.
Safety considerations:While both AC and DC voltage can be dangerous, they pose different risks. AC voltage is generally considered more dangerous at similar voltages because it can cause muscle contractions (tetany) that make it difficult to release a live wire, increasing the duration of exposure. The frequency of AC (50-60Hz) is particularly hazardous because it can interfere with the heart’s rhythm, potentially causing ventricular fibrillation. DC voltage, on the other hand, tends to cause a single muscle contraction, which may throw a person away from the source, reducing exposure time. However, high-voltage DC (e.g., from power lines) is extremely dangerous as it can arc through air over longer distances than AC at the same voltage. Additionally, DC is more likely to cause severe burns due to the sustained current flow in one direction, which can concentrate heat in a specific area of the body.
Storage capabilities:DC voltage is easily storable in batteries and capacitors. Batteries store chemical energy that can be converted back to DC electrical energy as needed, making them essential for portable devices and backup power systems. Capacitors store electrical energy in an electric field and can release it quickly, used in applications like camera flashes and power supply filtering. AC voltage cannot be stored directly in practical devices. To store AC energy, it must first be converted to DC using a rectifier, stored in a battery or capacitor, and then converted back to AC when needed, which adds complexity and energy loss. This is why most portable devices use DC power, even if they are charged from an AC mains supply.

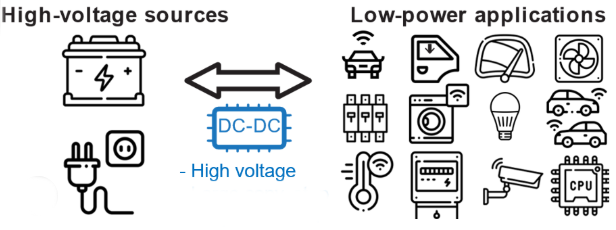

4.1 DC voltage applications
Portable electronic devices:Batteries that supply DC voltage power devices like smartphones, laptops, tablets, and cameras, ensuring they can operate without being connected to a mains power supply.
Automotive systems:Cars, trucks, and other vehicles use DC voltage for their electrical systems, including starting the engine, powering lights, and operating various onboard electronics.
Renewable energy systems:Solar panels generate DC voltage, which is either used directly in DC-powered devices or converted to AC via inverters for integration into the power grid.
Electronics manufacturing:Many electronic components, such as microchips and integrated circuits, require stable DC voltage for proper operation during manufacturing and testing processes.
Telecommunications equipment:Devices like routers, modems, and telephone systems often rely on DC power supplies to ensure continuous and reliable communication.
4.2 AC voltage applications
Residential and commercial power supply:The mains electricity supplied to homes, offices, and industries is AC voltage, powering appliances such as refrigerators, air conditioners, televisions, and lighting systems.
Industrial machinery:Large motors, pumps, and manufacturing equipment in factories typically operate on AC voltage due to the ease of obtaining high power levels and efficient transmission.
Electric power grids:AC voltage is the standard for transmitting electrical energy from power plants to consumers over long distances, as transformers can step up voltages for efficient transmission and step them down for safe use.
HVAC systems:Heating, ventilation, and air conditioning systems in buildings use AC voltage to run compressors, fans, and other components.
Public transportation:Trains, trams, and some electric buses utilize AC voltage for their propulsion systems, benefiting from the high power and efficient motor operation it enables.
DC voltage and AC voltage are two distinct forms of electrical potential difference with unique characteristics and applications. DC voltage provides a steady, unidirectional current, making it ideal for portable devices, automotive systems, and electronics that require stable power. AC voltage, with its alternating current and ability to be efficiently transmitted over long distances, is the backbone of the global power distribution network, powering homes, industries, and large-scale equipment. Understanding the differences between them is crucial for selecting the appropriate voltage type in various electrical and electronic applications, ensuring optimal performance and efficiency.
